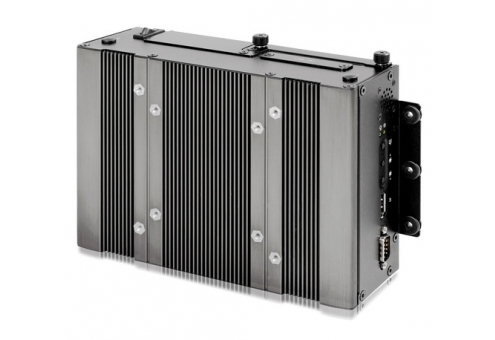

P1001 Series

Intel® Atom™ E3845处理器,支持CDS技术的转换型嵌入式系统
产品特点
  • 板载 Intel® Atom™ E3845 四核处理器,1.91GHz
  • 1 个 DDR3L SO-DIMM 内存插槽,可达 8GB
  • 1 个 2.5” SATA HDD / SSD 托盘,1 个 CFast 卡和 1 个 SIM 卡插槽
  • 2 个网口,4 个 USB,2 个串口,1 个 VGA,1 个 DisplayPort
  • 4 个独立 DI,4 个独立 DO
  • 9 至 48V 的宽压直流电源输入
  • 1 个全尺寸 Mini-PCIe 插槽
  • 支持壁挂、VESA 安装
  • 支持 CDS 技术,可转换为平板电脑模块
  • 内建 2 个 2W 扬声器
产品介绍
P1001采用Intel® Atom™ E3845 四核1.91GHz处理器,是一款无风扇嵌入式系统模块。透过德承的CDS模块化专利技术,P1001同时也是CV-100系列和CS-100系列工业平板电脑的运算主机,允许您按需求配置、升级和维护。

P1001提供丰富的I/O接口,包括2个网口,4个USB, 2个RS232/422/485串口,1个VGA,1个 DisplayPort,4个DI/4个DO,1个全尺寸Mini-PCIe插槽支持3G和WLAN。还支持3种类型的存储设备,包括2.5寸SATA硬盘,CFast和SIM卡,这些存储设备采用易访问性的设计,允许您快速的获取数据和易于维护。9至48V的宽压直流电源输入,防震抗冲击,各种工业级保护,P1001可转换的特性是您配置平板电脑时的理想解决方案,同时它也是一款强大的无风扇嵌入式计算机,可满足各种工业应用。
详细规格

P1001 Series

Model NameP1001P1001E
SystemProcessorOnboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
Memory1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC)
Support up to 8 GB
BIOSAMI 64Mbit SPI BIOS
GraphicsCDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
VGA1x VGA Connector (1920x1080@60Hz)
DP1x DisplayPort Connector (1920x1080@60Hz)
AudioLine-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
USB1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)
Serial Port2x RS-232/422/485 with Auto Flow Control Support, DB9
DIO8x Isolated Digital I/O (4in/4out)
StorageSSD/HDD1x 2.5” HDD/SSD Drive
SIM Socket1 x Front Accessible SIM Socket
CFast1 x Front Accessible CFast Socket
ExpansionMini PCI Express1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module
Universal Bracket 2x Universal I/O Brackets
Other FunctionWatchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Reset Button1x Reset Button
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A, 60W
PhysicalDimension ( W x D x H )204.5 x 149 x 37.5 mm204.5 x 150 x 60 mm
Weight Information1.34kg1.54kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS Mounting
Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection20A
Operating StystemMicrosoft® Windows®Windows® 10, Windows® 8, Windows® 7
Windows® Embedded 8 Standard, Windows® Embedded Standard 7
LinuxSupports by project
EnvironmentOperating TemperatureAmbient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals)
StorageTemperature-30°C to 85°C
Relative Humidity10%~95% (non-condensing)
ShockOperating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
订购信息
Available Models
Model No.Product Description
P1001-R10Intel® Atom™ E3845 Quad Core PC Module , 4x USB, 2x COM, 1x VGA and 1x DisplayPort
P1001E-R10Intel® Atom™ E3845 Quad Core PC Module , 4x USB, 2x COM, 1x VGA and 1x DisplayPort and 2x Universal I/O Bracket

Package Checklist
√ P1001 Series Slim Embedded Computer x 1√ Screw Pack x 3
√ DIO Terminal Block Connector (Female) x 1√ Power Terminal Block Connector (Female) x 1

Optional Accessories
Model No.Description
MEC-COM-M212-DB9Mini-PCIe Module with 2x RS-232 Serial Ports, 1x DB9 Cable (for P1001E only)
MEC-LAN-M102Mini-PCIe Module with 2x LAN Ports (for P1001E only)
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.0 Ports, 2x 30cm cable (for P1001E only)
UB03032x Universal Bracket each with 1x DB9 Cutout (for P1001E only)
UB0311Universal Bracket with 2x RJ45 Cutout (for P1001E only)
UB0314Universal Bracket with 2x USB Cutout (for P1001E only)
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
