工业触控显示器 (CV-100/M1000系列)

工业触控显示器 (CV-100/M1000系列)

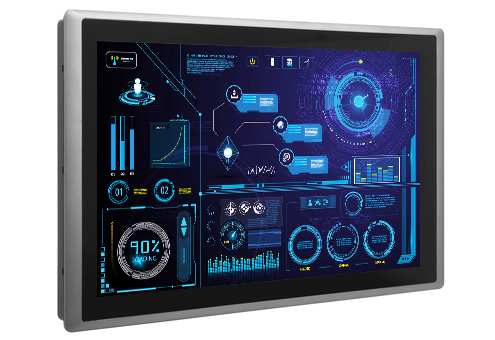

德承 CV-100/M1000 系列是一体化的工业触控显示器,它集成了高分辨率的 TFT-LCD 屏幕、5 线式电阻或电容式触摸屏。可选尺寸从 8 寸到 24 寸与 4:3 和 16:9 的显示器分辨率。Mylar 膜、背盖、前方铝板的颜色与商标皆可以定制,可适应客户不同的设备或操作环境,并提供相同的产品外观与使用感受。

ProductModel NameLCD SizeTouch TypeResolution / BrightnessI/O
CV-108 / M1101 SeriesCV-108 / M1101 Series8.4" TFTResistive / Capacitive800x600 (SVGA) / 400 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
CV-110 / M1101 SeriesCV-110 / M1101 Series10.4" TFTResistive / Capacitive800x600 (SVGA) / 400 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
CV-110H / M1101 SeriesCV-110H / M1101 Series10.4" TFTResistive / Capacitive1024x768 (XGA) / 400 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
CV-112H / M1101 SeriesCV-112H / M1101 Series12.1" TFTResistive / Capacitive1024x768 (XGA) / 500 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
CV-115 / M1101 SeriesCV-115 / M1101 Series15" TFTResistive / Capacitive1024x768 (XGA) / 350 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
CV-117 / M1101 SeriesCV-117 / M1101 Series17" TFTResistive / Capacitive / without Touch1280x1024 (SXGA) / 350 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
CV-119 / M1101 SeriesCV-119 / M1101 Series19" TFTResistive / Capacitive / without Touch1280x1024 (SXGA) / 350 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
CV-W115 / M1101 SeriesCV-W115 / M1101 Series15.6" TFTResistive / Capacitive1366x768 (WXGA) / 400 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
CV-W121 / M1101 SeriesCV-W121 / M1101 Series21.5"TFT-LCDResistive / Capacitive / without Touch1920x1080 (Full HD) / 300 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
CV-W124 / M1101 SeriesCV-W124 / M1101 Series24"TFT-LCDResistive / Capacitive / without Touch1920x1080 (Full HD) / 300 nits1x VGA
1x DisplayPort
1x HDMI
1x USB
1x COM
1x Audio
