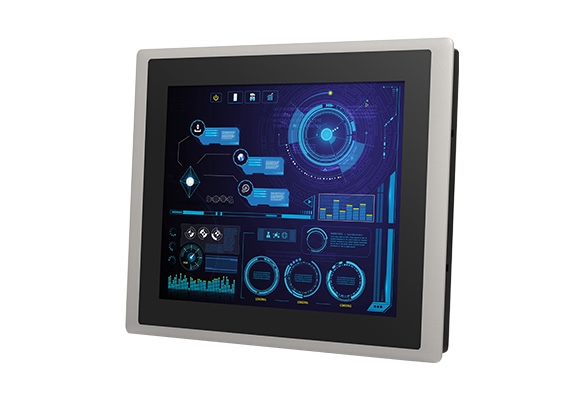

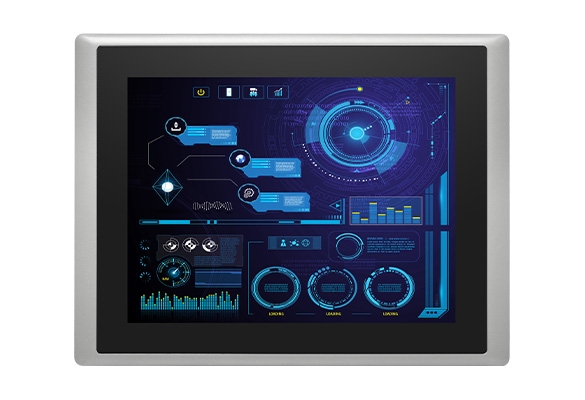

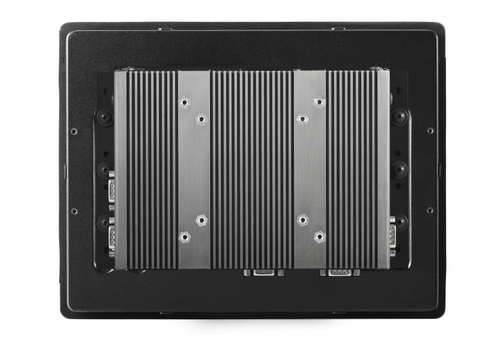

CV-110H / P1101 Series

10.4" Intel® Atom® / Pentium® 处理器，节能无风扇工业平板电脑

产品特点

10.4" TFT-LCD XGA 电阻式 5 线 / 投射电容式触控
板载 Intel® Atom® / Pentium® 处理器
三重独立显示器（通过 VGA 和 DisplayPort 输出）
2x LAN、4x USB、4x COM、1x VGA、1x DisplayPort、4x DI/4x DO
2x 全尺寸 Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
采用铝压铸前框架设计
True Flat IP65 前面板保护
支持面板/VESA/机架安装
支持 CDS 技术、点火感应和以太网供电

加入咨询清单规格表

产品介绍

产品介绍
详细规格
订购信息
相关下载

产品介绍

CV-110H/P1101系列是一款10.4寸的无风扇、节能、坚固耐用的工业平板电脑，具有400 nits高亮度和1024 x 768 (XGA)分辨率。采用Intel® Atom® / Pentium®处理器，支持三重独立显示（1个VGA，1个DisplayPort）。具有丰富的I/O接口，包括2个GbE网口，4个USB 3.0，4个COM，8个独立DIO，2个全尺寸Mini-PCIe插槽和1个SIM卡插槽，用于各种无线数据连接。

通过即插即用的CFM模块，可方便地为各种应用添加智能点火控制（IGN）和网口供电(PoE)功能。CV-110H/P1101系列還支持德承专利的CDS (Convertible Display System)技术。与普通的平板电脑相比更加灵活，并且大大降低了维护成本。 CV-110H/P1101系列具有嚴格的工業保護、宽工作温度、IP65 前面板防尘/防水，和宽压(9-48V)，适用于各种恶劣环境和关键应用。

Product Category >>>> Modular Panel PC & Industrial Monitor

需要协助？

联系我们

info@cincoze.com

详细规格

CV-110H Series

Model Name		CV-110HR	CV-110HC
Display	LCD Size	10.4" (4:3)
	Max. Resolution	1024 x 768
	Brightness (cd/m2)	470 cd/m²
	Contrast Ratio	1000 : 1
	LCD Color	16.2M
	Pixel Pitch (mm)	0.2055 (H) x 0.2055 (V)
	Viewing Angle (H-V)	178 / 178
	Backlight LED Life Time	70,000 hours (LED Backlight)
Touch Screen	Touchscreen Type	Resistive 5-wire	Projected Capacitive
Physical	Dimension (W x D x H)	295 x 227.3 x 56.2 mm
	Weight Information	2.24 kg
	Mechanical Construction	Die-Casting Flat Surface
Power	Power Consumption	4.99W (Typ.)	4.94W (Typ.)
Environment	Front Panel Protection	IP 65 Compliant
	Operating Temperature	Ambient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals)	Ambient with Air flow: -20°C to 80°C (with Industrial Grade Peripherals)
	Storage Temperature	-30°C to 80°C
	Relative Humidity	90% RH @ 40°C (Non-Condensing)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

P1101

Model Name		P1101
System	Processor	Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
System	Memory	• 1x DDR3L 1333/1600/1866 MHz SO-DIMM Socket, with up to 1600 MHz operation • Supports Un-buffered and Non-ECC Type, Up to 8GB
Graphics	Graphics Engine	Integrated Intel® HD Graphics 505
	Maximum Display Output	Supports Triple Independent Display
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface
	VGA	1x VGA (1920 x 1200 @60Hz)
	DP	1x DisplayPort (4K x 2K @60Hz)
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210
	USB	4x USB 3.2 Gen1 (Type A)
	Serial Port	4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
	DIO	8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block
Storage	SSD/HDD	1x 2.5” HDD Drive Bay (SATA 3.0)
	SIM Socket	1 x SIM Socket
	mSATA	1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Sockets
	CFM (Control Function Module) Interface	Optional CFM IGN Module for Power Ignition Function Optional CFM PoE Module for Power over Ethernet Function
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface
	Antenna Holes	4x Antenna Holes
Other Function	Instant Reboot	Support 0.2sec
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	Internal Speaker	AMP 2W + 2W
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
	Clear CMOS Switch	1x Clear CMOS Switch
	Reset Button	1x Reset Button
Power	Power Switch	1x Power Switch
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	1x 3-pin Terminal Block Connector with Power Input 9~48VDC
	Power Adapter (Optional)	1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
	Remote Power On/Off	1x Remote Power On/Off Connector, 2-pin Terminal Block
Physical	Dimension ( W x D x H )	204.5 x 149 x 41.5 mm
	Weight Information	1.49kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Physical Design	Fanless Design Jumper-less Design
	Mounting	Wall / VESA / CDS / DIN Mounting
Reliability & Protection	Reverse Power Input	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	Time: 294,617 hours
Operating Stystem	Microsoft® Windows®	Windows®10
Operating Stystem	Linux	Supports by project
Environment	Operating Temperature	Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
	Storage Temperature	-40°C to 85°C
	Relative humidity	95% RH @ 75˚C (Non-condensing)
	Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	• LVD IEC/EN 62368-1

Available Models
Model No.	Product Description
CV-110HR-R11/P1101-E50-R11	10.4" TFT-LCD XGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and Resistive 5-wire Touch
CV-110HC-R12/P1101-E50-R11	10.4" TFT-LCD XGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch
CV-110HR-R11/P1101-N42-R11	10.4" TFT-LCD XGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and Resistive 5-wire Touch
CV-110HC-R12/P1101-N42-R11	10.4" TFT-LCD XGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch

Model Configuration
	CV-110HR	CV-110HC	P1101-E50	P1101-N42
CV-110HR/P1101-E50	V	--	V	--
CV-110HC/P1101-E50	--	V	V	--
CV-110HR/P1101-N42	V	--	--	V
CV-110HC/P1101-N42	--	V	--	V

Package Checklist
√ CV-110H/P1101 Series Panel PC x 1	√ Power Terminal Block Connector (Female) x 1
√ Panel Mounting Kit x 1	√ Screw Pack x 1
√ Thermal Pad (for CPU Thermal Block) x 1	√ Remote Power On/Off Terminal Block Connector x 1
√ DIO Terminal Block Connector (Female) x 1

Optional Modules and Accessories
Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE02	CFM Module with PoE Control Function, Individual Port 25.5W
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
SL2-SL3	US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3	EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3	UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
