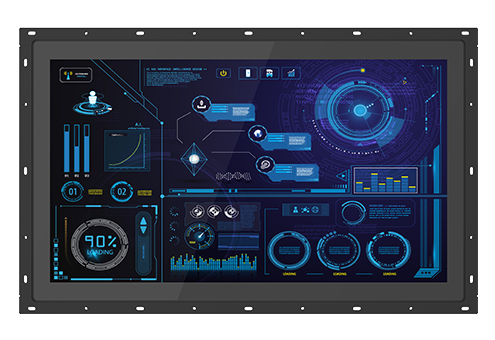

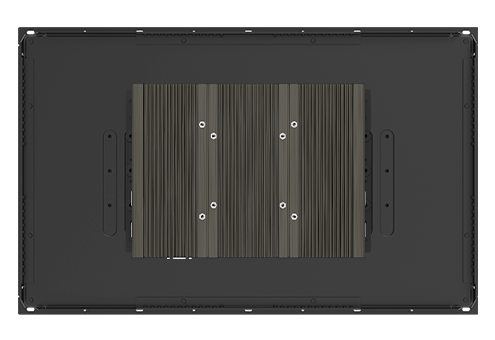

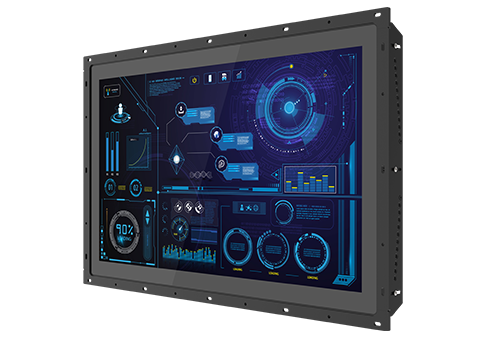

CO-W121C / P2202 Series

21.5 寸 TFT-LCD 全高清 16:9 开放式显示模块面板电脑，搭载第 12 代 Intel® Core™ 处理器和投影电容触摸屏。

产品特点

21.5 寸 TFT-LCD 投影电容触摸屏
内置 Intel® Alder Lake-P U 系列 Core™ 处理器
2 个 DDR5 SO-DIMM 插槽，最高支持 4800MHz 64GB 内存
设计具有可调节安装支架
四独立显示（CDS / HDMI / DP / VGA）
1 个 M.2 Key E 2230 插槽，适用于 Intel CNVi / 无线模块
前面板符合 IP65 防护等级

加入咨询清单规格表

产品介绍

产品介绍
详细规格
订购信息
相关下载

产品介绍

High-Performance Open Frame Panel PC (CO-100/P2000 Series)

德承开放式架构高效能工业平板电脑系列 (CO-100/P2202)，搭载 Intel® Alder Lake-P U 系列 Core® 处理器，除了丰富 I/O 接口 (1GbE LAN、USB3.2 Gen 2*1、COM、DIO 等)，与灵活的扩展性外，主要亮点来自其可调式设计 (专利号 No. : D224544, D224545, I802427)，通过多段刻度的调整与锁固方式，能大幅提升安装的便利度，有效降低与设备整合时的时间成本，是专为设备制造商所开发而成的产品，不仅能结合于不同材质、厚度的机柜外壳，呈现整体一致性外，其强固设计也兼顾工业严苛环境现场端 HMI 的应用需求。

Product Category >>>> Modular Panel PC & Industrial Monitor

高运算效能

——

CO-100/P2202 系列搭载 Intel® 7 制程的第 12 代 Core™ i5/i3 U 系列（Alder Lake-P）处理器，除了 15W 低功耗的优势外，还具有高达 10 核心 (2P+8E) 的出色效能。内置 Intel Iris Xe 显示芯片，可轻松驾驭 AI 深度学习中所需的图像运算效能。

CDS 专利技术

——

通过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来升级需求，无论是更换屏幕或是系统效能提升，只需换置单一组件即可达成，大幅节省升级成本。

Patent No. M482908

安装简易

——

专属可调式安装支架，拥有厚度调整的选择及支持多款锁固方式 (Panel Type/Boss Type)，对于使用全平面安装与标准安装的工业机台，提供更简易、便捷的整合关键。

Patent No.: D224544, D224545, I802427

一体式设计

——

兼具弹性与可靠，除了是开放式架构的平板电脑，可布署于设备机台中，其一体式的设计，在卸除安装支架后，可直接通过 VESA 安装作为单机使用，或安装于 19 寸机架中提供显示功能。

强固、安全、更可靠

——

CO-100/P2202 系列具备一系列工业级防护，如无风扇设计、宽工作温度范围、宽范围直流电源输入（9 至 48VDC）、IP65 前面板防尘/防水等，能在严苛的工业环境中，执行现场端 HMI 的应用。

视频

需要协助？

联系我们

info@cincoze.com

详细规格

CO-W121C

Model Name		CO-W121C
Display	LCD Size	21.5” (16:9)
	Resolution	1920 x 1080
	Brightness	300 cd/m2
	Contrast Ratio	5000 : 1
	LCD Color	16.7M
	Pixel Pitch	0.24825 (H) x 0.24825 (V) mm
	Viewing Angle	178 (H) / 178 (V)
	Backlight LED Life Time	50,000 hrs
Touch Screen	Touchscreen Type	Projected Capacitive Touch
Physical	Dimension (W x D x H)	550 x 343.7 x 63.3
	Weight	7.16 kg
	Construction	One-piece and Slim Bezel Design
	Mounting Type	Flat / Standard / VESA / Rack Mount
	Mounting Bracket	Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment )
Power	Power Consumption	24.8W (Max.)
Protection	Ingress Protection	Front Panel IP65 Compliant * According to IEC60529
Environment	Operating Temperature	Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals)
	Storage Temperature	-20°C to 60°C
	Humidity	80% RH @ 50°C (Non-condensing)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

P2202 Series

Model Name		P2202	P2202E
System	Processor	• Onboard 12th Generation Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
	Memory	• 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB
	BIOS	• AMI BIOS
Graphics	Graphics Engine	• Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE • Integrated Intel® UHD Graphics: Core™ i3-1215UE
	Maximum Display Output	• Supports Quad Independent Display
	CDS	• 1x CDS Connector (1920 x 1080 @60Hz)
	DP	• 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
	HDMI	• 1x HDMI Connector (3840 x 2160 @30Hz)
	VGA	• 1x VGA Connector (1920 x 1200 @60Hz)
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	• 2x 1GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210
	COM	• 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
	USB	• 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A
	DIO	• 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
Storage	SSD/HDD	2x 2.5” SATA HDD/SSD Bay (SATA3.0)
Storage	RAID	Support RAID 0/1
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Socket
	PCI Express	--	1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
	SIM Socket	• 1x SIM Socket
	M.2	• 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
	CFM (Control Function Module) Interface	• 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion
	CDS (Convertible Display System) Interface	• 1x CDS Interface for Convertible Display Module
Other Function	Clear CMOS Switch	• 1x Clear CMOS Switch
	Reset Button	• 1x Reset Button
	Instant Reboot	• Support 0.2sec Instant Reboot Technology
	Watchdog Timer	• Software Programmable Supports 256 Levels System Reset
	OSD Button	• LCD On/Off, Brightness Up, Brightness Down
	Internal Speaker	• AMP 2W + 2W
	Status LED Indicator	• Power LED, HDD LED
Power	Power Button	• 1x ATX Power On/Off Button
	Power Mode Switch	• 1x AT/ATX Mode Switch
	Power Input	• 9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	• 1x Remote Power On/Off, 2-pin Terminal Block
	Max. Power Consumption	• i5-1245UE CPU: 95.06W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing
	Inrush Current (Peak)	• i5-1245UE CPU: 5.381 A @ 24V
Operating Stystem	Windows	• Windows®11, Windows®10
Operating Stystem	Linux	• Ubuntu Desktop 22.04 LTS
Physical	Dimension ( W x D x H )	• 254.5 x 190 x 41.5 mm	• 254.5 x 190 x 61 mm
	Weight Information	• 2.22 kg	• 2.74 kg
	Mechanical Construction	• Extruded Aluminum with Heavy Duty Metal
	Mounting	• Wall / VESA / CDS / DIN Rail
	Physical Design	• Fanless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input Protection	• Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	• 15A
	CMOS Battery Backup	• SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	• 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Environment	Operating Temperature	• -40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	• -40°C to 70°C
	Relative Humidity	• 95%RH @ 70°C (non-Condensing)
	Shock	• Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
	Vibration	• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	• UL, cUL, CB, IEC/EN 62368-1

订购信息

Available Models
Model No.	Product Description
CO-W121C-R10/P2202-i5-R10	21.5" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CO-W121C-R10/P2202E-i5-R10	21.5“ TFT-LCD Full HD 16:9 Open Frame Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CO-W121C-R10/P2202-i3-R10	21.5" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch
CO-W121C-R10/P2202E-i3-R10	21.5“ TFT-LCD Full HD 16:9 Open Frame Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch

Model Configuration
	CO-W121C	P2202 (i3/i5)	P2202E (i3/i5)
CO-W121C/P2202	V	V	--
CO-W121C/P2202E	V	--	V

Package Checklist
• CO-W121C/P2202 Series Panel PC x1	• Thermal Pad x1
• Power Terminal Block x1	• Screws Pack x5
• Remote Power On/Off Terminal Block Connector x1	• PCI / PCIe Card Installation Kit x 1 (For P2202E Only)
• DIO Terminal Block Connector x2	• DIN Rail Mounting Kit x1

Optional Modules and Accessories
Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable
CFM-PoE04	CFM Module with PoE Control Function, Individual Port 25.5W (For P2202 Only)
CFM-PoE05	CFM Module with PoE Control Function, Individual Port 25.5W (For P2202E Only)
RC-E4-02	Riser Card with 1x PCIe x4 Slot (For P2202E Only)
RC-PI-02	Riser Card with 1x PCI Slot (For P2202E Only)
MEC-COM-M212-TDB9	Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable (For P2202E Only)
MEC-COM-M334-TDB9	Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable (For P2202E Only)
MEC-USB-M102-30	Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable (For P2202E Only)
MEC-LAN-M102-30	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2202E Only)
UB1203	1x Universal Bracket with 2x DB9 Cutout (For P2202E Only)
UB1211	1x Universal Bracket with 2x RJ45 Cutout (For P2202E Only)
UB1214	1x Universal Bracket with 2x USB Cutout (For P2202E Only)
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN, wide temp (-30°C ~ +70°C), level VI
GST120A24-CIN	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI (For P2202E Only)

Datasheet
文件名	发行日期	下载
CO-W121C / P2202 Series Datasheet	2023/11/30	下载

Manual
文件名	发行日期	下载
CO-100 / P2202 Series User Manual	2025/02/25	下载

Driver
文件名	发行日期	下载
P2200 Series Driver - Audio	2023/11/30	下载
P2200 Series Driver - Chipset	2023/11/30	下载
P2200 Series Driver - COM Port	2023/11/30	下载
P2200 Series Driver - GNA	2023/11/30	下载
P2200 Series Driver - Graphic	2023/11/30	下载
P2200 Series Driver - LAN	2023/11/30	下载
P2200 Series Driver - Intel ME	2023/11/30	下载
P2200 Series Driver - RAID	2023/11/30	下载

回到产品系列介绍
