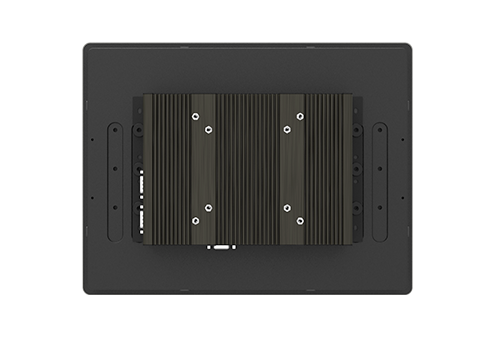

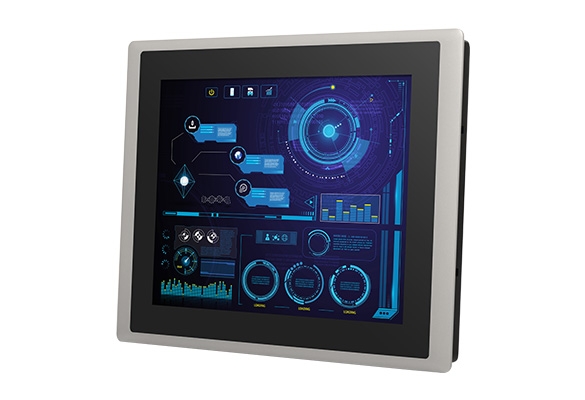

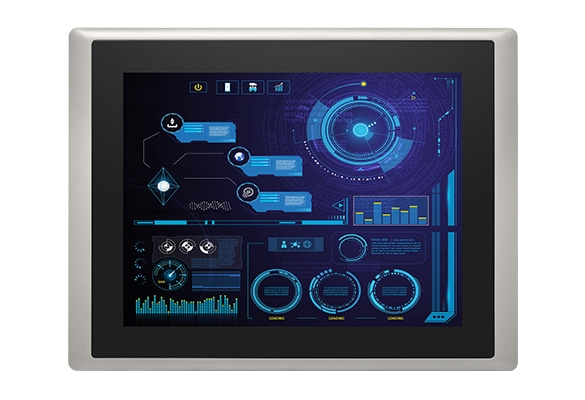

CV-112H / P1301 Series

12.1" TFT-LCD 节能工业平板电脑，搭载 Intel® Alder Lake-N 系列处理器

产品特点

12.1" XGA TFT-LCD，配备电阻式 5 线触控 / 投射式电容触控
搭载 Intel® Alder Lake-N Core™ i3-N305, N97 处理器和 Atom® x7425E 处理器
1 个 DDR5 SO-DIMM 插槽，支持最高 4800MHz 和 16GB 内存
1 个 M.2 Key E Type 2230 插槽，可扩展无线网络 / Intel CNVi 模块
1 个 M.2 Key B Type 3042 / 3052 插槽，可扩展 5G / 存储 / 附加卡
前面板符合 IP65 标准
强固铝合金压铸前框设计
支持面板式 / VESA / 机架式安装
支持 Cincoze 专利 CDS 技术（专利号码 M482908）

加入咨询清单规格表

产品介绍

产品介绍
详细规格
订购信息
相关下载

产品介绍

Cincoze Power Efficient Industrial Panel PC - CV-100/P1000 Series

CV-100/P1301 系列是一款模组化工业平板电脑，搭载 Intel® Alder Lake-N 处理器。齐全完整的荧幕尺寸选择与灵活的扩充性是特色之一，除原生丰富的 I/O 接口 (2.5 GbE LAN、USB 3.2 Gen 2 x1、COM 和 DIO) 外，也具备 M.2 Key B Type 3052、M.2 Key E Type 2230 扩充槽，还可利用独家 CFM 扩充模组增添 PoE/IGN 等功能。透过德承独家的 CDS 专利技术，对于未来电脑效能升级或是更换荧幕更加具备弹性。强固的 CV-100/P1301 系列可满足设备机台的 HMI 与生产流程可视化的多元应用。

Product Category >>>> Modular Panel PC & Industrial Monitor

AI 与多工运行的强悍效能

——

CV-100/P1301 系列搭载 Intel® 7 制程 Alder Lake-N 四核心处理器，与前一代 Elkhart Lake 平台相比，CPU Single – Thread效能提升高达 130%，Multi-thread 效能提升 109%。而处理器内建 UHD Graphics 显示晶片，其 AI 推论的物件辨识效能更是提升了 6.85倍。

升级、维修超方便

——

透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来需求，无论是更换荧幕或是系统效能提升，只需要换置单一组件即可达成，大幅节省升级成本。

Patent No. M482908

齐全完整的产品组合

——

CV-100/P1301 系列拥有多样化的产品组合，从荧幕尺寸 (8.4 - 24 寸)、显示比例 (4:3 / 5:4 / 16:9) 到触控方式（多点电容式及单点电阻式），可针对应用需求进行选择。

强固、安全、更可靠

——

面对严苛险峻的使用环境，CV-100/P1301 系列备有一系列的工业级防护，包括宽工作温度范围、宽范围直流电源输入（9 至 48VDC）、IP65 前面板防护/防水等，有利于现场端 HMI 或生产流程可视化等应用。

视频

需要协助？

联系我们

info@cincoze.com

详细规格

CV-112H Series

Model Name		CV-112HR	CV-112HC
Display	LCD Size	12.1" (4:3)
	Max. Resolution	1024 x 768
	Brightness (cd/m2)	500
	Contrast Ratio	700 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.24 (H) x 0.24 (V)
	Viewing Angle (H-V)	160 / 140
	Backlight LED Life Time	50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	Resistive 5-wire	Projected Capacitive
Physical	Dimension (W x D x H)	345 x 265.3 x 57 mm
	Weight Information	3.16 kg
	Mechanical Construction	Die-Casting Flat Surface
Power	Power Consumption	9.11W (Max.)	9.06W (Max.)
Environment	Front Panel Protection	IP 65 Compliant
	Operating Temperature	-20°C to 75°C (with Industrial Grade peripherals; Ambient with air flow)	-20°C to 80°C (with Industrial Grade peripherals; Ambient with air flow)
	Storage Temperature	-30°C to 80°C
	Relative Humidity	90% RH @ 40°C (Non-Condensing)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

P1301

Model Name		P1301
System	Processor	• Onboard Intel® Alder Lake-N Series Processor: - Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W - Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W
	Memory	• 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and Non-ECC Type, Up to 16GB
	BIOS	• AMI BIOS
Graphics	Graphics Engine	• Integrated Intel® UHD Graphics
	Maximum Display Output	• Supports Triple Independent Display
	CDS	• 1x CDS Connector (1920 x 1080 @60Hz)
	DP	• 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
	VGA	• 1x VGA Connector (1920 x 1200 @60Hz)
Audio	Audio Codec	• Realtek® ALC888, High Definition Audio
	Line-out	• 1x Line-out, Phone Jack 3.5mm
	Mic-in	• 1x Mic-in, Phone Jack 3.5mm
I/O	LAN	• 2x 2.5GbE LAN, RJ45 - GbE1 / GbE2: Intel® I225
	COM	• 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
	USB	• 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A
	DIO	• 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block
Storage	SSD/HDD	• 1x 2.5" Front Accessible SATA HDD/SSD Bay
Storage	M.2 SSD	• 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support SATA SSD (SATA3.0)
Expansion	M.2 Key E Socket	• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion
	M.2 Key B Socket	• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / SATA ), Support 5G/Storage/Add-on Card Expansion
	SIM Socket	• 1x Front Accessible SIM Socket
	CFM (Control Function Module) Interface	• 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion
Other Function	Clear CMOS Switch	• 1 x Clear CMOS Switch
	Reset Button	• 1x Reset Button
	Instant Reboot	• Support 0.2sec Instant Reboot Technology
	Watchdog Timer	• Software Programmable Supports 256 Levels System Reset
	OSD Function	• LCD On/Off, Brightness Up, Brightness Down
	Internal Speaker	• AMP 2W + 2W
	Status LED Indicator	• Power LED, HDD LED
Power	Power Button	• 1x ATX Power On/Off Button
	Power Mode Switch	• 1x AT/ATX Mode Switch
	Power Input	• 9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	• 1x Remote Power On/Off, 2-pin Terminal Block
	Remote Power LED	• 1x Remote Power LED, 2-pin Terminal Block
	Max. Power Consumption	• i3-N305 CPU: 48.59W • N97 CPU: 34.04W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing
	Inrush Current (Peak)	• i3-N305 CPU: 5.538 A@12V • N97 CPU: 5.242 A@12V
Operating Stystem	Microsoft® Windows®	• Windows®11, Windows®10
Operating Stystem	Linux	• Ubuntu Desktop 22.04 LTS
Physical	Dimension ( W x D x H )	• 204.5 x 149 x 46.5mm
	Weight	• 1.57 kg
	Mechanical Construction	• Extruded Aluminum with Heavy Duty Metal
	Mounting	• Wall / VESA / CDS / DIN Rail
	Physical Design	• Fanless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input	• Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	• 15A
	CMOS Battery Backup	• SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	• 306,338 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Environment	Operating Temperature	• Intel® Processor N97 / Atom® x7425E: -40°C to 70°C • Intel® Core™ i3-N305: -40°C to 60°C * PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	• -40°C to 70°C
	Relative Humidity	• Intel® Processor N97 / Atom® x7425E: 95%RH @ 70°C (non-Condensing) • Intel® Core™ i3-N305: 95%RH @ 60°C (non-Condensing)
	Shock	• Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 @ DC-input 24V
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

Available Models
Model No.	Product Description
CV-112HR-R10/P1301-N97-R10	12.1" TFT XGA 4:3 Display Modular Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and Resistive 5-wire Touch
CV-112HC-R11/P1301-N97-R10	12.1" TFT XGA 4:3 Display Modular Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and P-Cap. Touch
CV-112HR-R10/P1301-X7425E-R10	12.1" TFT XGA 4:3 Display Modular Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and Resistive 5-wire Touch
CV-112HC-R11/P1301-X7425E-R10	12.1" TFT XGA 4:3 Display Modular Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and P-Cap. Touch
CV-112HR-R10/P1301-i3-R10	12.1" TFT XGA 4:3 Display Modular Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and Resistive 5-wire Touch
CV-112HC-R11/P1301-i3-R10	12.1" TFT XGA 4:3 Display Modular Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and P-Cap. Touch

Model Configuration
	CV-112HR	CV-112HC	P1301-N97	P1301-X7425E	P1301-i3
CV-112HR/P1301-N97	V	--	V	--	--
CV-112HC/P1301-N97	--	V	V	--	--
CV-112HR/P1301-X7425E	V	--	--	V	--
CV-112HC/P1301-X7425E	--	V	--	V	--
CV-112HR/P1301-i3	V	--	--	--	V
CV-112HC/P1301-i3	--	V	--	--	V

Package Checklist
• CV-112H/P1301 Series Panel PC x 1	• Power Terminal Block Connector x 1
• Thermal Pad (for CPU Thermal Block) x 1	• Remote Function Terminal Block Connector x 1
• Screw Pack x 2	• DIO Terminal Block Connector x 1
• Panel Mounting Kit x 8	• M.2 Key B Type 3052 to 3042 Adapter Bracket x 1

Optional Modules and Accessories
Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE02	CFM Module with PoE Control Function, Individual Port 25.5W
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
