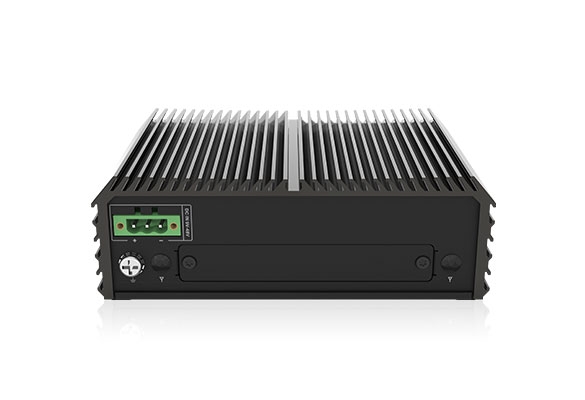

DA-1200
Intel Alder Lake-N Processor N97 Rugged Embedded Computer
产品特点
- Onboard Intel ® Alder Lake-N Processor N97
- Ultra Compact Size (150 x 105 x 52.3 mm)
- 1 x DDR5 SO-DIMM Sockets, Supports Up to 4800MHZ, 16GB
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 1 x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
- Optional CMI modules for I/O expansion
- Wide Operating Temperature -40°C to 70°C
产品介绍
手掌大小的 DA-1200 ，搭载 Intel® N97 处理器（Alder Lake-N 平台），是 DIAMOND 产品线中体积較小且具价格竞争优势的机种。DA-1200 承袭德承一贯的强固特性，通过以及符合多种国际认证标准，如：工业环境下的 EMC 标准（IEC 61000-6-2 和 IEC 61000-6-4）、军规抗冲击/震动标准 MIL-STD-810H。特别推荐给智能制造、智能物流、工厂自动化所需的 IoT Gateway 应用。
仅 手掌大小
——
DA-1200 尺寸为 150 x 105 x 52.3 mm，仅有一个手掌大。
高 性价比
——
DA-1200 配备 Intel® 7 制程技术 N97 处理器，并支援 16GB DDR5 记忆体。其整体效能和具竞争力的价格，充分展现高性价比的优势。
易于 维护
——
为了方便客户快速设定及调整，Reset Switch、Clear CMOS Switch、AT / ATX Mode Switch 以及 SIM 卡插槽，全部集中配置与前侧维护区域。
模组化的 扩充设计
——
配备 2x M.2 Key B 插槽，也可透过 M.2 Key B Adapter Card 转为 Key E插槽（选配），全面覆盖无线传输需求（5G、Wi-Fi 和 GNSS 等 )。而存储方面则可提供 2.5” SSD / Half-slim SSD / M.2 SSD 多样选择，更具弹性。
多样的 安装方式
——
DA-1200 支持多种安装方式，包括 Wall Mount（壁挂式） 、Side Mount（测挂式）和 DIN-RAIL（轨道型），满足各种不同方式的安装应用。
视频
详细规格
| Model Name | DA-1200 | |
|---|---|---|
| System | Processor | • Onboard Intel® Alder Lake-N Processor N97 Quad Core, up to 3.6 GHz |
| Memory | • 1x DDR5 SO-DIMM Socket • Supports DDR5 4800MHz Memory Up to 16GB (un-buffered and non-ECC) | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics |
| Maximum Display Output | • Supports Two Independent Display (Onboard 1x DisplayPort + Optional CMI 1x Display) | |
| DP | • 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz | |
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1: Intel® I225 - GbE2: Intel® I225 |
| USB | • 2x 10Gbps USB 3.2 Gen2 x1, Type A | |
| Storage | SSD/HDD | • 1x 2.5" SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0) |
| M.2 SSD | • 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket, Support NVMe SSD (PCIe Gen 3x1) or SATA SSD (SATA 3.0) • 1 x M.2 SSD shared by M.2 Key B Type 2242 Socket, Support NVMe SSD (PCIe Gen 3x2) | |
| Expansion | M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion • 1x M.2 Key B Type 2242 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion |
| SIM | • 1x Front Accessible SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x CMI Interface for optional CMI Module Expansion | |
| Other Function | Clear CMOS Switch | • 1x Clear CMOS Switch |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Antenna | • 2x Antenna Holes | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Physical | Dimension ( W x D x H ) | • 150 x 105 x 52.3 mm |
| Weight Information | • 0.81 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / Side / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 614,831 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | • Windows® 11, Windows® 10 |
| Linux | • Ubuntu 22.04 | |
| Environment | Operating Temperature | • -40°C to 70°C PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95% RH @ 70°C (Non-condensing) | |
| Shock | • MIL-STD-810H | |
| Vibration | • MIL-STD-810H | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
订购信息
| Model No. | Product Description |
|---|---|
| DA-1200-N97-R10 | Intel Alder Lake-N Processor N97 Rugged Embedded Computer |
| DA-1200 Embedded System x1 | Wall Mounting Kit x1 |
| Thermal Pad (for CPU Thermal Block) x 1 | Power Terminal Block Connector x 1 |
| Screw Pack x 1 | Remote Function Terminal Block Connector x 1 |
| M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| Model No. | Description |
|---|---|
| CMI-DP101 | CMI Module with 1x DP Connector |
| CMI-HD01 | CMI Module with 1x HDMI Connector |
| CMI-DVI101 | CMI Module with 1x DVI Connector |
| CMI-VGA101 | CMI Module with 1x VGA Connector |
| CMI-LPPS102 | CMI Module with 1x LPT Port, 1x PS/2 Connector |
| CMI-COM102 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) |
| CMI-DIO100 | CMI Module with 16DIO (8in 8out) |
| UB0403 | Universal Bracket with 2x DB9 Cutout for DA Series |
| UB0415 | Universal Bracket with DIO Cutout for DA Series |
| UB0409 | Universal Bracket with PS/2, LPT Cutout for DA Series |
| UB0406 | Universal Bracket with DP Cutout for DA Series |
| UB0407 | Universal Bracket with DVI-D Cutout for DA Series |
| UB0416 | Universal Bracket with VGA Cutout for DA Series |
| UB0408 | Universal Bracket with HDMI Cutout for DA Series |
| UB0429-R10 | Universal Bracket with 2x Antenna Cutout |
| SIDE02 | Side Mount Kit for DA Series, with KMRH-K175 for DIN-Rail option |
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| AC-BE01-R10 | M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
| GST60A12-CIN-1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
