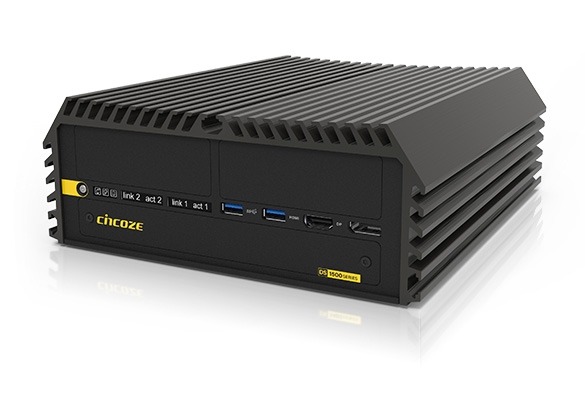

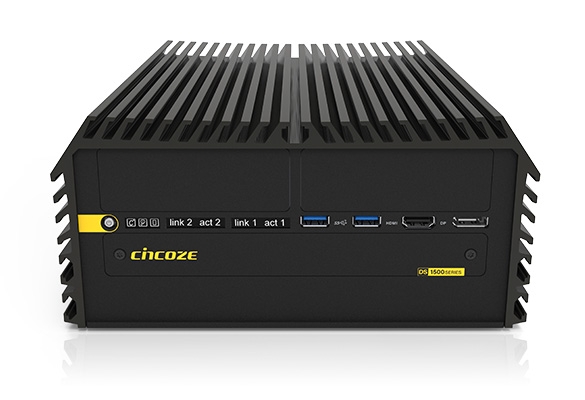

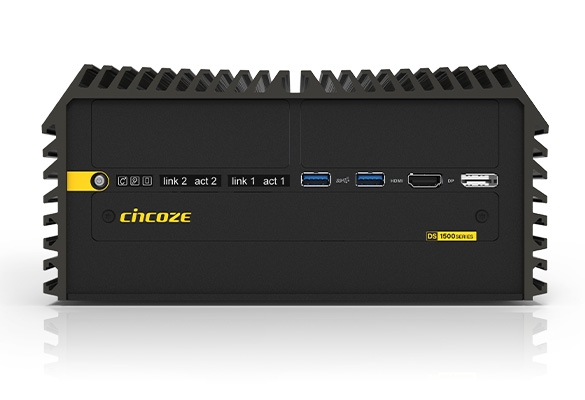

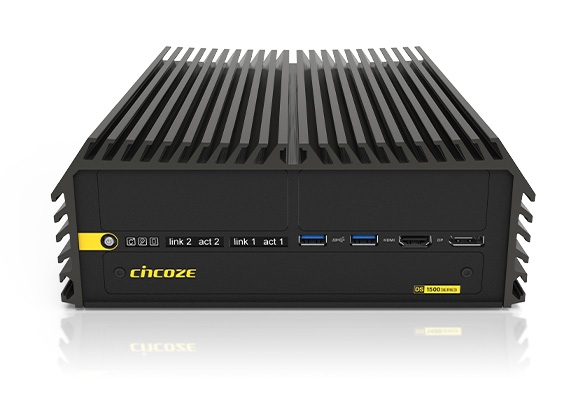

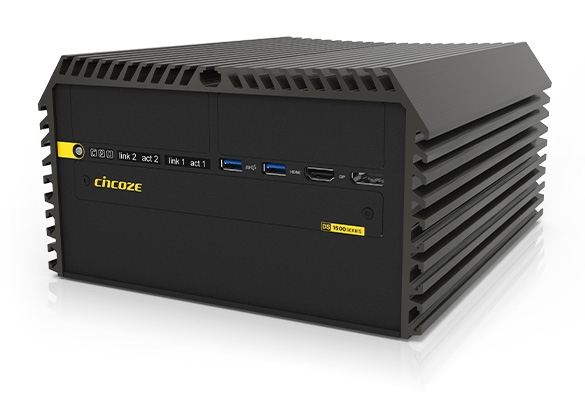

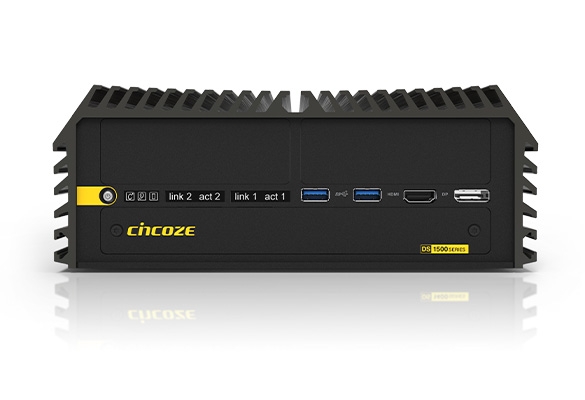

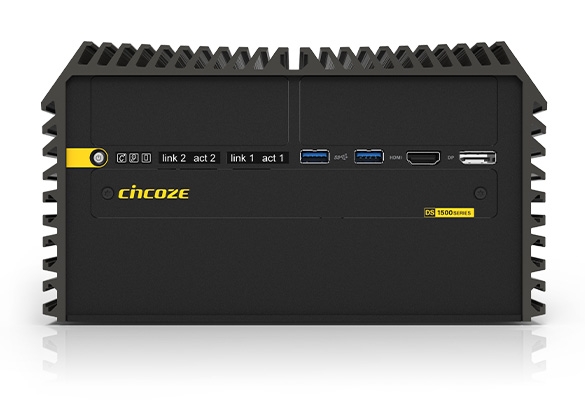

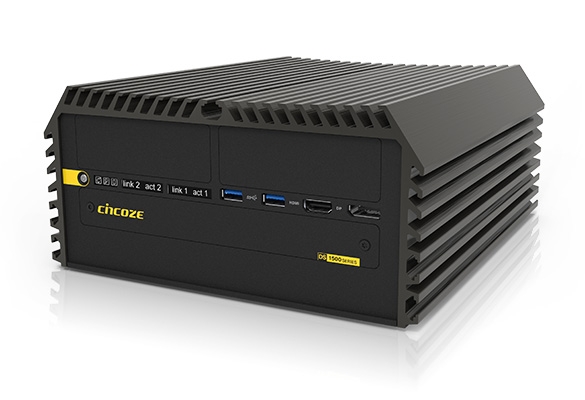

DS-1500 Series

Intel® Arrow Lake-S Core™ Ultra 200S 系列处理器，高性能且支持 PCIe 扩展的强固型嵌入式计算机，支持最多 2 张 PCI/PCIe 扩展卡
产品特点
  • Intel® Arrow Lake-S Core™ Ultra 200S 系列（最高 65W TDP）
  • 2 个 DDR5 SODIMM/CSODIMM 插槽，最高 6400MHz，96GB
  • 2 个 PCI/PCIe 扩展槽，最高支持 130W 扩展
  • 可选配 CMI 模块以扩展 I/O
  • 可选 CFM 模块，支持硬件 TPM、点火检测与 PoE
  • 宽温运行范围 -40°C 至 60°C
产品认证
  • EN 50121-3-2
  • MIL-STD-810H
  • EN 45545
加入咨询清单 规格表
产品介绍

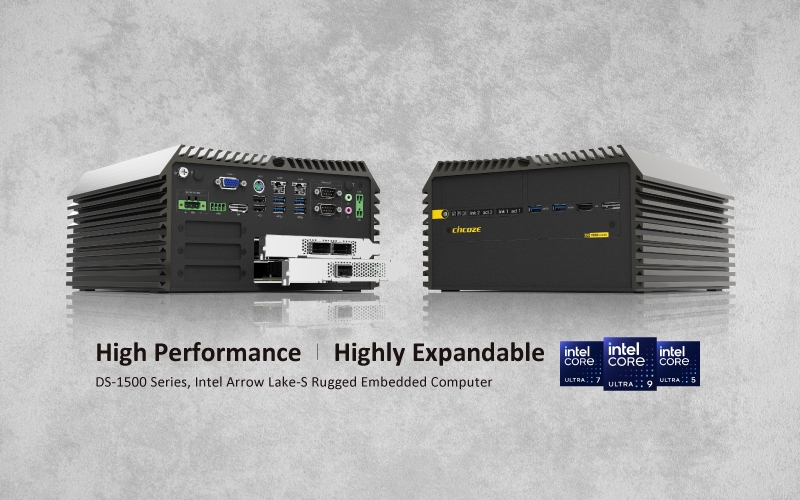

High Performance, Highly Expandable, DS-1500 Series, Intel Arrow Lake-S Rugged Embedded Computer

DS-1500 系列是一款高性能、可扩充的强固型嵌入式工控机，除了强大的性能外，更拥有丰富的 I/O 接口和强大的功能性。为满足不同的应用需求，除了拥有至多 2x PCI/PCIe 扩充能力外，专属的模块化设计能灵活扩充 I/O 和特定功能。此外，DS-1500 系列通过多项国际认证，确保在多样化的严苛环境中发挥稳定可靠的效能，是智能制造和轨道交通等应用的理想选择。

Product Category >>>> Rugged Embedded Fanless PC



强大的 AI 运算能力

——

可搭载 Intel Core Ultra 200S series 处理器，支持 24 核心与 24 线程。透过 CPU 与整合式 GPU、NPU 的协同运作，AI 运算效能大幅提升至 36 TOPS，是前一代机种的 3.5 倍，为 AI 加速带来显著效益，是 Edge AI 应用的理想选择。

强大的 AI 运算能力
6400MHz DDR5 CSODIMM 内存



6400MHz DDR5 CSODIMM 内存

——

配备两组内存插槽，可支持 96GB 6400MHz DDR5 CSODIMM 内存，并具备 ECC（Error Correction Code）错误修正技术，对于稳定性与可靠性要求极高的工控领域至关重要。



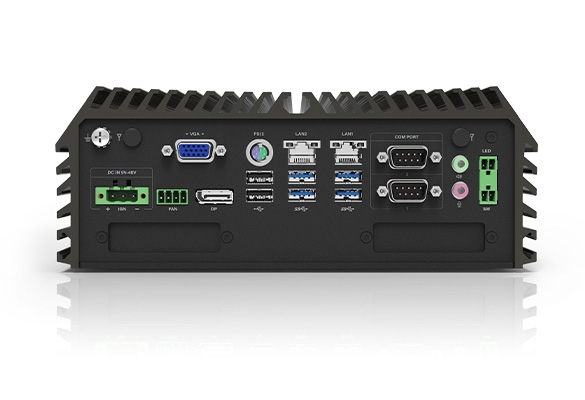

完整丰富的 I/O 与扩充性

——

透过原生与模块化设计，DS-1500 提供全面且完整的接口配置。无论是高速传输（1 / 2.5 / 10 GbE LAN、USB 3.2 / 2.0）或工业用 I/O（COM、DIO、PS/2）、显示输出等，皆能满足多样化应用需求。此外，支持 M.2 Key B / M / E 插槽，可搭配无线通信模块或 NVMe SSD，为联机、储存与扩充应用提供强大支持。

完整丰富的 I/O 与扩充性

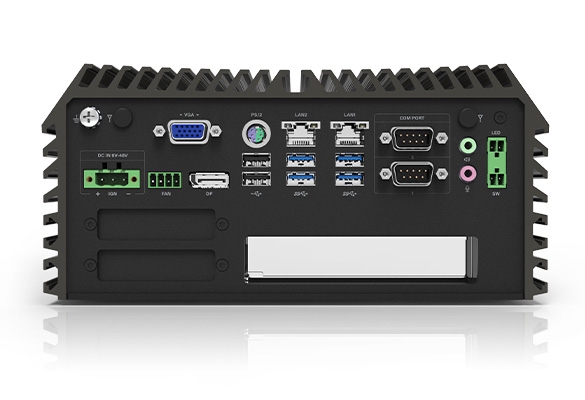

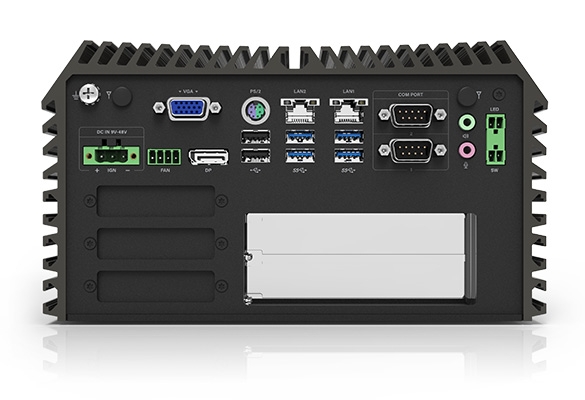

PCI/PCIe 扩充卡与专利固定架



PCI/PCIe 扩充卡 与专利固定架

——

支持最多 2x PCI/PCIe 扩展槽（DS-1502），可安装各类 I/O、影像撷取、数据采集及运动控制等扩充卡，亦可支持单张功耗 130W、尺寸 111 x 235 mm 的 GPU 卡。透过专利的可调式固定架，能在高振动环境中稳妥固定扩充卡，确保长时间稳定运行。



强固设计 稳健可靠

——

具备宽温（-40°C - 60°C）、宽电压（9 - 48 VDC）、过电压、过电流及静电放电（ESD）等强固设计与防护机制，确保严苛环境下的稳定运行。高可靠性亦体现在多项垂直市场认证中，包括美国军规冲击与震动标准（MIL-STD-810H），以及轨道交通标准 EMC（EN 50121-3-2）与防火标准（EN 45545-2）。


强固设计 稳健可靠
相关报导
[ 产品聚焦 ] Cincoze 高阶效能 & PCIe 扩充型工控机 (DS-1500 系列)
2025-09-18
[ 产品聚焦 ] Cincoze 高阶效能 & PCIe 扩充型工控机 (DS-1500 系列)
详细规格
Model NameDS-1500DS-1501DS-1502
SystemProcessor

• Arrow Lake-S Ultra 200S Series CPU:
  - Intel® Core™ Ultra 9 285 24 Cores Up to 5.6 GHz, TDP 65W
  - Intel® Core™ Ultra 9 285T 24 Cores Up to 5.4 GHz, TDP 35W
  - Intel® Core™ Ultra 7 265 20 Cores Up to 5.3 GHz, TDP 65W
  - Intel® Core™ Ultra 7 265T 20 Cores Up to 5.3 GHz, TDP 35W
  - Intel® Core™ Ultra 5 245 14 Cores Up to 5.1 GHz, TDP 65W
  - Intel® Core™ Ultra 5 245T 14 Cores Up to 5.1 GHz, TDP 35W
  - Intel® Core™ Ultra 5 225 10 Cores Up to 4.9 GHz, TDP 65W
  - Intel® Core™ Ultra 5 225T 10 Cores Up to 4.9 GHz, TDP 35W

Chipset• Intel W880 Chipset
Memory• 2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type
  - Ultra 9 / 7: Supports Up to 6400MHz, 96GB
  - Ultra 5: Supports Up to 5600MHz, 96GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® Xe LPG Graphics
Maximum Display Output• Supports Quad Independent Display
VGA• 1x VGA Connector : 1920 x 1200@60Hz
DP• 2x DP Connector : 4096 x 2304@60Hz
  - Support cable switch HDMI 4096 x 2160@30Hz
  * Verified maximum resolution: 3840 x 2160@60Hz
HDMI• 1x HDMI Connector : 4096 x 2160@30Hz
  * Verified maximum resolution: 3840 x 2160@30Hz
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1 x Line-out, Phone Jack 3.5mm
Mic-in• 1 x Mic-in, Phone Jack 3.5mm
I/OLAN• 1x 2.5 GbE LAN, RJ45
  - GbE1: Intel® I225
• 1x GbE LAN, RJ45
  - GbE2: Intel® I219
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 2x 10Gbps USB 3.2 Gen2x1, Type A
• 4x 5Gbps USB 3.2 Gen1x1, Type A
• 2x 480Mbps USB 2.0, Type A
PS/2• 1 x PS/2, 6 Pin Mini-DIN Female Connector
Storage / Expansion2.5" SSD / HDD• 1x 2.5" Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
• 1x 2.5" Internal SATA HDD/SSD Bay ( SATA 3.0 )
M.2 Key B Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion
• 2x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / SATA), Support GNSS / Storage / Add-on Card Expansion
M.2 Key M Socket• 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA), Support Storage / Add-on Card Expansion
PCI Express　• 1 x PCI/PCIe Expansion Slot with Optional Riser Card
  * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm
  * Supports GPU card up to 75W		• 2 x PCI/PCIe Expansion Slot with Optional Riser Card
  * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm
  * Supports GPU card up to 130W
SIM• 2x SIM Socket
CMI (Combined Multiple I/O) Socket• 2x High Speed CMI Interface for optional CMI Module Expansion
• 2x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Socket• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
• 1x CFM-TPM Interface for optional CFM-TPM Module Expansion
Other FunctionRAID• Support RAID 0/1/5/10
External FAN Connector• 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
TPM• Support Discrete TPM2.0 (with Optional CFM Module)
Clear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
Antenna Holes• 2
PowerPower Button• 1 x ATX Power On/Off Button
Power Mode Switch• 1 x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1 x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption• 35W CPU: 163W
• 65W CPU: 262.8W
  - Test conducted with CPU, 1x RAM, and 1x storage
  - 100% load during burn-in testing
Inrush Current (Peak)• 35W CPU: 5.812 A@24V
• 65W CPU: 5.983 A@24V
PhysicalDimension ( W x D x H )• 227x261x88 mm• 227x261x108 mm• 227x261x128 mm
Weight Information• 4.9 KG• 5.3 KG• 5.7 KG
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall Mount
Physical Design• Fanless Design
• Cableess Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 307,224
  - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 24.04
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 60°C (-40℉ to 140℉)
• 65W TDP Processor: TBC
  - With extended temperature peripherals; Ambient with air flow
  - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 85°C (-40℉ to 185℉)
Relative Humidity• 95%@60°C (non-Condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Railway• EMC:
  EN 50155: 2021 Clause 4.4.6, 13.4.9
  - EN 50121-1 : 2017
  - EN 50121-3-2: 2016 + A1: 2019
Fire Protection• EN 45545-2
订购信息
Available Model
Model No.Description
DS-1500-R10Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer
DS-1501-R10Intel® Arrow Lake-S Core™ Ultra 200S Series Processors,  High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 1x PCI/PCIe Expansion Card
DS-1502-R10Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 2x PCI/PCIe Expansion Cards

Package Checklist
DS-1500 Series Embedded System x 1Heatsink Pack x 1
Wall Mounting Kit x 1Screw Pack x 1
Power Terminal Block Connector x 1Remote Function Terminal Block Connector x 2
Fan Terminal Block Connector x 1M.2 Key B Type 3052 to 3042 Adapter Bracket x 3

Optional Modules and Accessories
Model No.Description
CMI-LAN01-R12CMI Module with 4x RJ45 Intel I210 GbE LAN Ports
CMI-M12LAN01-R12CMI Module with 4x M12 Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN03-R10CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port
CMI-COM02CMI Module with 4x RS232/422/485 Serial Ports
CMI-ICOM01CMI Module with 4x Electrical Isolated RS232/422/485 Serial Ports
CMI-DIO02CMI Module with 16x Optical Isolated DIO (8 in/8 out)
CFM-PoE03CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CFM-TPM01-R10CFM Module with Hardware TPM 2.0
RC-E16-01Riser Card with 1 x PCIex16 Slot
RC-PI-01Riser Card with 1 x PCI Slot
RC-E8E8-R10Riser Card with 2 x PCIex8 Slots
RC-E16E1-01Riser Card with 1x PCIex16, 1x PCIex1 slots, supports GPU card up to 75W
RC-E16E1-02-R10Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports GPU card up to 130W
RC-E16PI-01Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card)
RC-PIPI-01Riser Card with 2x PCI Slots
AC-BE01-R10M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card
UB1004Universal Bracket with 4x DB9 Cutout
UB1010Universal Bracket with 4x M12 Cutout
UB1012Universal Bracket with 4x RJ45 Cutout
UB1018Universal Bracket with DIO Cutout
UB1028Universal Bracket with 2x RJ45 Cutout
UB1030-R10Universal Bracket with 4x M12 X-Coded Cutout
UB03032x Universal Bracket each with 1x DB9 Cutout
UB0311Universal Bracket with 2x RJ45 Cutout
UB0331-R10Universal Bracket with 2x Antenna Hole
FAN-EX101External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
FAN-UB100Internal Exhaust Fan with 4pin Connector
FAN-UB101Internal Intake Fan with 4pin Connector
MEC-LAN-2002i-SM.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (0℃~+70℃),  2x RJ45 Connector, Cervoz
MEC-LAN-2002iM.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (-40℃~+85℃), 2x RJ45 Connector, Cervoz
MEC-LAN-2602iM.2 2280 (B+M key) 2-port 2.5GbE isolated Ethernet board(-40℃~+85℃), 2x RJ45 Connector, Cervoz
MEC-COM-2012M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz
MEC-COM-2032iM.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz
MEC-CAN-2812iM.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector, Cervoz
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
GST360A24-CINAdapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and Tubes, Level VI
RSD-200D-24Railway Single Output DC-DC Converter 200W / DC 24V
Power Cable1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube
