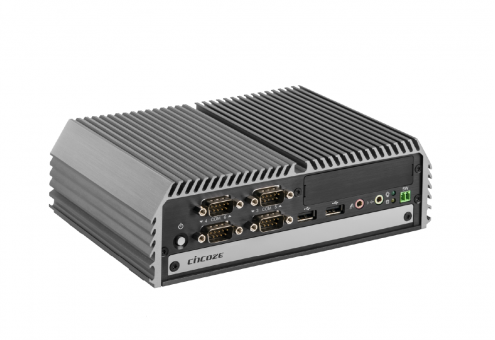

DI-1000

第6代Intel® Core™处理器(Sky Lake-U),高性能、紧凑型和模块化的强固型嵌入式系统
产品特点
  • 板载第6代 Intel® Core™ i3-6100U处理器(BGA)
  • 1个DDR4 SO-DIMM 内存插槽,可达32 GB
  • 三重独立显示(DVI-I, DisplayPort)
  • 紧凑型尺寸(W203 x D142 x H66.8 mm) ,重量1.65 kg
  • 1个2.5” SATA HDD / SSD热插拔抽取式托盘和1个内置2.5” SATA HDD/SSD托盘,支持RAID 0/1

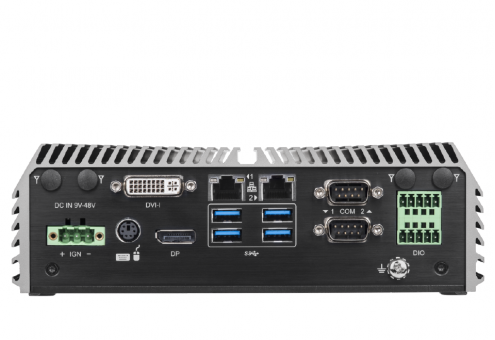

  • 丰富的I/O,包含1个DVI-I,1个DP,2个千兆网口,6个串口,6个USB和8路光学隔离 DIO

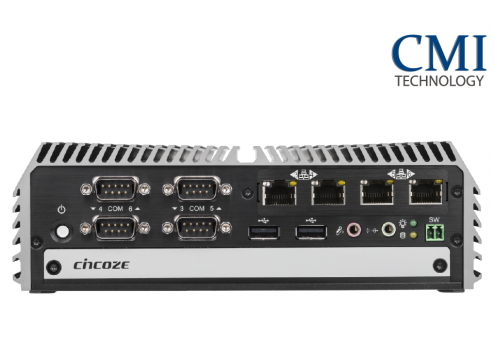

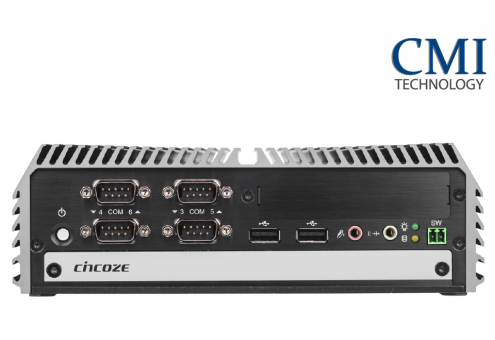

  • 支持I/O扩展的CMI接口
  • 支持智能点火控制(带可选配的CFM模块)

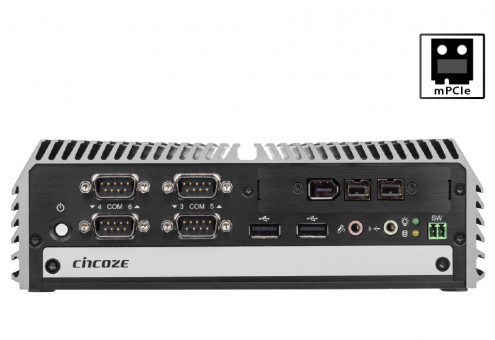

  • 2个全尺寸Mini-PCIe插槽,适用于各种I/O扩展
  • 宽工作温度 -40°C 至 70°C
  • EN50121-3-2铁路应用认证
  • E-Mark (E13, No. 10R-0514273)车载应用认证
产品介绍
德承DI-1000系列是一款高性能、紧凑、模块化的无风扇嵌入式计算机,采用第6代Intel®Core™移动处理器(Skylake-U),集成Intel®HD图形引擎,1个DDR4内存插槽可达32GB,使DI-1000系列能够满足各种高端计算需求。DI-1000系列尺寸W203 x D142 x H66.8毫米非常紧凑,却拥有多样的I/O,包括DVI-I和DP显示接口,2 个千兆网口,6个串口,6个USB,8路光学隔离 DIO,1个PS / 2接口,音频输入输出和远程电源开关,支持两个全尺寸Mini-PCIe插槽可安装无线通信和I / O扩展,容纳两个2.5” SATA HDD / SSD(1个热插拔抽取式托盘和1个内置托盘)支持RAID 0/1,使DI-1000系列在市场上同紧凑尺寸机型中拥有相较多样的功能。

DI-1000系列仅重1.65公斤,支持4种安装方式(壁挂、导轨、侧挂和VESA),允许您安装在任何狭小的地方。搭配德承的CMI(接口扩展模块)、CFM(控制功能模块)和MEC(Mini-PCIe扩展模块)技术,使DI-1000系列可根据具体需要进行各式各样的扩展,包括多网口(RJ45 / M12)、智能点火控制和各种类型的I/O接口,DI-1000系列是工厂自动化、机器视觉、车载和移动监视应用的创新解决方案。
详细规格
Model NameDI-1000
SystemProcessor• Onboard Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz, 15W TDP)
• Onboard Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz, 15W TDP)
• Onboard Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz, 15W TDP)
ChipsetSoC
Memory1x DDR4 260-pin SO-DIMM Socket, Support up to 32 GB
(2133MHz, Un-buffered and Non-ECC type)
Graphics• Integrated Intel® HD Graphics
• Three Independent Display
Audio• Realtek® ALC888-GR
• High Definition Audio
BIOSAMI 8Mbit SPI BIOS
I/O InterfaceDVI1x DVI-I Connector, Resolution 1920 x 1080
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
LAN2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame,
IEEE 1588v2 and PXE), RJ45
- GbE1: Intel I210
- GbE2: Intel I219LM
Serial Port6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
USB.4x USB 3.2 Gen1, Type-A
.2x USB 2.0, Type-A
PS/2 Port1x PS/2, 6-Pin Mini-DIN Female Connector
Isolated DIO8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
AT/ATX Switch1x AT/ATX Mode Switch
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
StorageSSD/HDD2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
(One Internal, One Front Accessible & Hot-swappable)
mSATA2x mSATA (Shared by Mini-PCIe Socket) (Gen3)
ExpansionCFM (Control Function Module) Interface1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface1x CMI Interface for CMI Modules
Mini PCI Express2x Full-size Mini PCIe Supports Wireless &  I/O Expansion
SIM Socket1x SIM Socket
Other FunctionCFMSupport CFM (Control Function Module) Technology
CMISupport CMI (Combined Multiple I/O) Technology
Instant RebootSupport 0.2sec
Super CapSuper Cap integrated for CMOS Battery Maintenance-free
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdapterOptional AC/DC Adapter
.AC/DC 12V/5A, 60W
.AC/DC 24V/5A, 120W
PhysicalDimension (WxDxH)203 x 142 x 66.8 mm
Weight Information1.65 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / Side / DIN-RAIL / VESA
Unibody DesignYes
Fanless DesignYes
Cable-less DesignYes
Jumper-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage ProtectionProtection Range: 51~58V
​Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
ESD Protection+/-8kV (air), +/-4kV (contact)
Surge2 kV
MTBFTime360, 145 Hours
Calculation ModelTelcordia SR-332 Issue 3, Method 1, Case 3
EnvironmentGB, GC
Temperature40°C
Operating SystemWindowsWindows 10
Windows 8.1
Windows 7
EnvironmentOperating TemperatureOperating Temperature: -40°C to 70°C
(With extended temperature peripherals; Ambient with air flow;
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature-40°C to 85°C
Relative Humidity95% RH @ 70°C (Non-condensing)
ShockOperating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
订购信息
Available Models
Model No.Product Description
DI-1000-i3-R116th Gen. Intel® Core™ i3-6100U High Performance, Compact and Modular Rugged Embedded Computer
DI-1000-i5-R116th Gen. Intel® Core™ i5-6300U High Performance, Compact and Modular Rugged Embedded Computer
DI-1000-i7-R116th Gen. Intel® Core™ i7-6600U High Performance, Compact and Modular Rugged Embedded Computer

Package Checklist
√ DI-1000 Embedded System x 1√ Power Terminal Block Connector x 1
√ CPU Heatsink Thermal Pad x 1√ Remote Power On/Off Terminal Block Connector x 2
√ Screw Pack x 1√ DIO Terminal Block Connector x 2
√ Wall Mounting Kit x 1√ DVI-I to VGA Adaptor

Optional Modules and Accessories
Model No.Description
CFM-IGN102CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V
CMI-LAN01-R12/UB0712CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket
CMI-M12LAN01-R12/UB0710CMI Module with M12 Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket
MEC-COM-M212-DB9/UB0703Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable,
1x Universal Bracket with 2x DB9 Cutout for DI-1000
MEC-LAN-M102-15/UB0711Mini-PCIe Module with 2x LAN Ports / 1x Universal Bracket
DIN01DIN-RAIL Mount Kit, KMRH-K175
SIDE01SIDE Mount Kit
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI
