DS-1402

第 13/12 代 Intel® Core™ 系列处理器,高性能、可扩展、模块化强固型嵌入式电脑,2 个 PCI/PCIe 扩展插槽
产品特点
  • Intel® 第 13/12 代 Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3 处理器(最大 65 W TDP)
  • 2 个 DDR5 SO-DIMM 插槽,支持 ECC/非 ECC 类型内存,高达 4800MHz,64GB
  • 2 个 GbE LAN 和可选的 2 个 10GbE LAN
  • 2 个 2.5 英寸 SATA 存储、3 个 mSATA 插槽、1 个用于 NVMe SSD 的 M.2 key M
  • 2 个 PCI/PCIe 扩展插槽
  • 用于 I/O 扩展的可选 CMI 模块
  • 用于点火感应和 PoE 的可选 CFM 模块
  • 宽工作温度 -40°C 至 70°C
  • MIL-STD-810G 军用标准和 EN50155(EN 50121-3-2 only)
  • 安全标准:UL、cUL、CB、IEC、EN 62368-1
  • 支持 Intel® OpenVINO™ 开发套件
  • 通过 Intel® ESDQ(边缘软件设备质量认证)认证:Edge Insights for AMR 软件套装
产品介绍

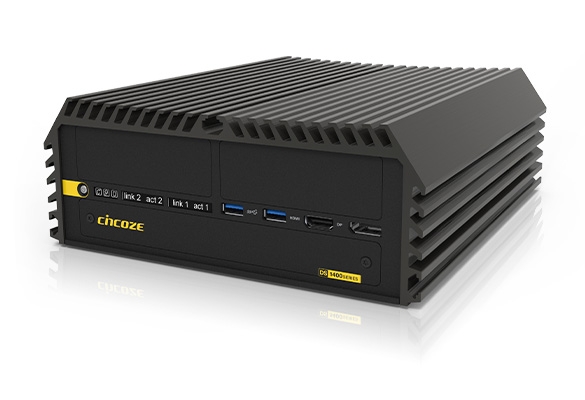

DS-1402, 12th Gen. Intel Alder Lake-S Rugged Embedded Computer

DS-1402 是一款高效能、可扩展的强固型嵌入式电脑,除了强大的性能外,更拥有丰富的 I/O 接口和强大的功能性。为满足不同的应用需求,除了拥有 2x PCI/PCIe 扩展能力外,还可透过 Cincoze 专属的 CMI、CFM、MEC 模块,灵活地扩展所需的 I/O 和特定功能。此外,DS-1402 通过多项国际认证,确保在多样化的严苛环境中发挥稳定可靠的效能,是智能制造和轨道交通等应用的理想选择。

Product Category >>>> Rugged Embedded Fanless PC




强大的 运算效能

——

DS-1402 可搭载 Intel® 7 制程的第 13/12 代 Core™ i9/i7/i5/i3(Raptor Lake-S/Alder Lake-S)处理器,可拥有高达 24 核心(8P + 16E)及 32 线程的配置,处理效能是 Comet Lake-S 的 1.35 倍以上。此外,透过 Intel® Xe 架构的 UHD 770 显示芯片,在 GPU 图像分类推理效能则是 Comet Lake-S 的 2.8 倍,非常适用于 AI 和多种边缘运算应用,展现强大的处理效能。

强大的 运算效能

I/O 接口与模块化扩展


I/O 接口与
模块化扩展

——

DS-1402 拥有丰富且专为工业需求设计的 I/O 接口,包括至多 2x 1 GbE LAN、6x USB 3.2、2x USB 2.0、2x RS232/422/485、2x 2.5 吋 SATA、3x mSATA、1x M.2 key M(适用于 NVMe SSD)、2x SIM 卡插槽、3x Mini-PCIe,以及独立的四显输出(DisplayPort、HDMI、VGA)。此外,尚可透过 Cincoze 专属的 CMI/CFM 模块可增加额外的 I/O 或其他功能,如 10 GbE LAN、PoE(网口供电)和 IGN(智能点火控制)等功能。




PCI/PCIe
扩展卡

——

DS-1402 支持 2x PCI/PCIe 扩展槽,至多可容纳一张 110W 且尺寸为 111 x 235mm 的扩展卡。可依据应用需求,灵活扩展 I/O、GPU、影像采集、数据采集及运动控制卡等。

PCI/PCIe 扩展卡

可调式 PCIe 固定架



可调式
PCIe 固定架

——

荣获专利的 PCI/PCIe 卡可调式固定架,能够稳妥的固定附加卡。如此独特的设计,在高振动的环境中,有效避免卡片因振动造成松脱,确保系统的稳定运行。

Patent No. I773359



强固设计 稳健可靠

——

DS-1402 的强固性可从其工业级保护设计及不同领域行业认证中体现。除了宽温(-40 ~ 70°C)、宽电压(9 - 48 VDC)、过电压、过电流和静电保护(ESD)等特点,还符合军规冲击震动标准 MIL-STD-810G。通过国际认可的 UL 62368-1 安全认证,进一步保障产品的安全性和可靠性。为提供更安心的轨道交通解决方案,还通过 EN 50155 中的电磁兼容(EMC)EN 50121-3-2 标准。

强固设计 稳健可靠

视频
详细规格
Model NameDS-1402
SystemProcessor

• 13th Generation Intel® Raptor Lake-S Series CPU:
  - Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
  - Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
  - Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
  - Intel® Core™ i5-13400E 10 Cores Up to 4.6 Ghz, TDP 65W
  - Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
  - Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
  - Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
  - Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
  - Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

• 12th Generation Intel® Alder Lake-S Series CPU:
  - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
  - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
  - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
  - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
  - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
  - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
  - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
  - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
  - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
  - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
  - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
  - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W

Chipset• Intel R680E Chipset
Memory• 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output• Supports Quad Independent Display
VGA• 1x VGA Connector : 1920 x 1080 @ 60Hz
DP• 2x DP Connector : 4096 x 2304 @ 60Hz
  * Verified maximum DP resolution: 3840x2160 @ 60Hz
HDMI• 1x HDMI Connector : 4096x2160 @ 30Hz
  * Verified maximum resolution: 3840x2160 @ 30Hz
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1 x Line-out, Phone Jack 3.5mm
Mic-in• 1 x Mic-in, Phone Jack 3.5mm
I/OLAN• 2 x GbE LAN, RJ45
  - GbE1: Intel® I219
  - GbE2: Intel® I210
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 2 x USB 3.2 Gen2x1 (10Gbps), Type A
• 4 x USB 3.2 Gen1x1 (5Gbps), Type A
• 2 x USB 2.0 (480Mbps), Type A
PS/2• 1 x PS/2, 6 Pin Mini-DIN Female Connector
StorageSSD/HDD• 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
• 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
mSATA• 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
M.2 SSD• 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 )
RAID• Support RAID 0/1/5/10
ExpansionPCI Express• 2 x PCI/PCIe Expansion Slot with Optional Riser Card
  * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm
Mini PCI Express• 3 x Full-size Mini-PCIe Socket
SIM Socket• 2 x SIM Socket
CMI (Combined Multiple I/O) Interface• 2 x High Speed CMI Interface for optional CMI Module Expansion
• 2 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface• 1 x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector• 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch• 1 x Clear CMOS Switch
Reset Button• 1 x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
PowerPower Button• 1 x ATX Power On/Off Button
Power Mode Switch• 1 x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1 x Remote Power LED, 2-pin Terminal Block
PhysicalDimension ( W x D x H )• 227 x 261 x 128 mm
Weight Information• 5.44 KG
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 371,274 Hours
  - Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 22.04
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor: -40°C to 50°C (With External Fan Kit)
  - With extended temperature peripherals; Ambient with air flow
  - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 85°C
Relative Humidity• 95%RH @ 70°C (non-Condensing)
Shock• MIL-STD-810G
Vibration• MIL-STD-810G
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety• UL, cUL, CB, IEC, EN 62368-1
订购信息
Available Model
Model No.Description
DS-1402-R1013/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slot

Package Checklist
√ DS-1402 Embedded System x1√ Heatsink Pack x1
√ Wall Mounting Kit x1√ Screw Pack x1
√ Power Terminal Block Connector x 1√ Remote Function Terminal Block Connector x 2
√ Fan Terminal Block Connector x 1

Optional Modules and Accessories
Model No.Description
CMI-LAN01-R12CMI Module with 4x RJ45 Intel I210 GbE LAN Ports
CMI-M12LAN01-R12CMI Module with 4x M12 Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN03-R10CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port
CMI-COM02CMI Module with 4x RS232/422/485 Serial Ports
CMI-ICOM01CMI Module with 4x Electrical Isolated RS-232 Serial Ports
CMI-DIO02CMI Module with 16x Optical Isolated DIO (8 in/8 out)
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable
MEC-COM-M212-DB9Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable
UB1010Universal Bracket with 4x M12 Cutout
UB1012Universal Bracket with 4x RJ45 Cutout
UB1018Universal Bracket with DIO Cutout
UB1028Universal Bracket with 2x RJ45 Cutout
UB1030-R10Universal Bracket with 4x M12 X-Coded Cutout
UB03032x Universal Bracket each with 1x DB9 Cutout
UB0311Universal Bracket with 2x RJ45 Cutout
UB0314Universal Bracket with 2x USB Cutout
CFM-PoE03CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
RC-E8E8-R10Riser Card with 2 x PCIex8 Slots
RC-E16E1-01Riser Card with 1x PCIex16 and 1x PCIex1 Slots (PCIe x16 Slot Supports Dual Deck Add-on Card)
RC-E16PI-01Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card)
RC-PIPI-01Riser Card with 2x PCI Slots
FAN-EX101External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
FAN-UB100Exhaling fan with 4pin Connector, Universal Bracket
FAN-UB101Inhaling fan with 4pin Connector, Universal Bracket
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
