DI-1200

Intel® 第 12 代 Alder Lake-P 平台,高效且节能的强固型嵌入式电脑
产品特点
  • 搭载第 12 代 Intel® Alder Lake-P U 系列 Core™ i7/i5/i3 处理器
  • 1 个 DDR5 SO-DIMM 插槽,支持最高 4800MHz,32GB 内存
  • 四个独立显示 (2x DP / HDMI / CMI 显示)
  • 1 个 M.2 Key E Type 2230 插槽,可扩展 无线网络 / Intel CNVi 模块
  • 1 个 M.2 Key B Type 3042 / 3052 插槽,可扩展 5G / 存储 / 附加卡
  • CMI 技术,可选的 I/O 模块扩展
  • CFM 技术,支持电源点火感应功能与 PoE
  • 宽工作温度范围 -40°C 到 70°C
产品认证
  • EN 50121-3-2
  • EN 61000-6-2
  • EN 61000-6-4
  • MIL-STD-810H
产品介绍
High Performance, Power-saving - DI-1200, an Intel Alder Lake-P Compact Rugged Computer

DI-1200 搭载第 12 代 Intel® Core™ U 系列处理器(Alder Lake-P Platform),在提供强大效能的同时也拥有 15W 的低功耗优势。在紧凑外型下蕴含丰富 I/O 界面和扩充选项,可满足狭小空间中对高效能强固嵌入式电脑的需求,特别适用于工业自动化、仓储物流、交通、环境监控以及物联网等应用场景。




高效能、低功耗

——

DI-1200 搭载 Intel® 7 制程的第 12 代 Core™ i7/i5/i3(Alder Lake-P)U 系列处理器,展示强大的处理效能。仅 15W 的超低功耗,非常适合受电池容量限制的移动式设备。

高效能、低功耗

小于 A5


小于 A5

——

DI-1200 尺寸仅为 203 x 142 x 66.8mm,比 A5 还小。是移动设备 (自动引导车 AGV、自主移动机器人 AMR)、狭小车内空间或工厂端小型机箱的理想选择。




高速 I/O

——

DI-1200 提供丰富的高速 I/O,包括:LAN (10GbE、2.5GbE、1GbE)、USB 3.2 (10Gbps、5Gbps)、USB 2.0 等,使得资料与影响的传输更为迅速,能轻松连接各式高速装置。

高速 I/O

完整的无线传输方案


完整的无线传输方案

——

配置了一个 M.2 Key E 插槽和一个 M.2 Key B 插槽,提供全方位的无线传输选项,包括:GSM、GNSS、Wi-Fi 和蓝牙。同时可支持 Intel CNVi 模组,满足多元的传输需求。




快速抽取硬盘

——

移动式设备常面临快速拿取资料的需求,DI-1200 将具有可热插拔 2.5 寸 SATA HDD/SSD 插槽设计在机身前维护区,可轻松快捷取得硬盘资料。

快速抽取硬盘

安全稳固


安全稳固

——

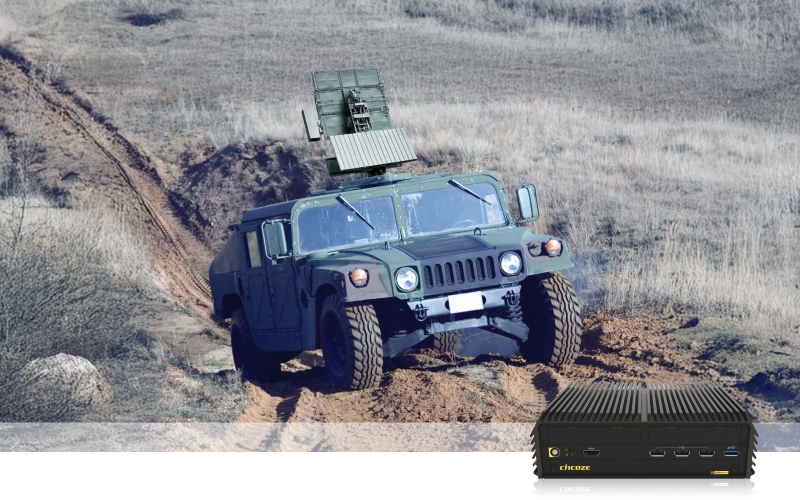

DI-1200 以其工业级防护和多项行业认证展现优越的强固性。符合国际电工委员会制定工业环境下的 EMC 标准 (IEC 61000-6-2 和 IEC 61000-6-4),确保在众多电磁波的环境中仍能正常运作。同时,DI-1200 符合美国军事标准 MIL-STD-810H,能够在极端冲击和震动条件下稳定运行。


视频
详细规格
Model NameDI-1200
SystemProcessor• Onboard 12th Intel® Alder Lake-P U-Series CPU:
  - Intel® Core™ i7-1265UE 10 Cores Up to 4.70 GHz, TDP 15W
  - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W
  - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
Memory• 1x DDR5 SO-DIMM Socket,
  Supports Un-buffered and non-ECC Type, Up to 32GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® Iris® Xe Graphics: Core™ i7-1265UE, i5-1245UE
• Integrated Intel® UHD Graphics: Core™ i3-1215UE
Maximum Display Output• Supports Quad Independent Display
HDMI• 1x HDMI Connector (3840 x 2160@60Hz)
DP• 2x DisplayPort Connector (3840 x 2160@60Hz)
CMI Display• 1x CMI Interface for Optional CMI-DP/CMI-HDMI/CMI-VGA Module Expansion
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1 x Line-out, Phone Jack 3.5mm
Mic-in• 1 x Mic-in, Phone Jack 3.5mm
I/OLAN• 2x 2.5 GbE LAN, RJ45
  - GbE1: Intel® I225
  - GbE2: Intel® I225
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 1 x USB 3.2 Gen2x1 (10Gbps), Type A
• 2 x USB 3.2 Gen1x1 (5Gbps), Type A
• 3 x USB 2.0 (480Mbps), Type A
StorageSSD/HDD• 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
M.2 SSD• 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket
RAID• Support RAID 0/1
ExpansionM.2 Key E Socket• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion
M.2 Key B Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / USB2.0 / SATA ), Support 5G/Storage/Add-on Card Expansion
SIM Socket• 2 x Front Accessible SIM Socket
CMI (Combined Multiple I/O) Interface• 1x CMI Interface for optional CMI-LAN Module Expansion
• 1x CMI Interface for optional CMI-Display / CMI-COM / CMI-DIO Module Expansion
CFM (Control Function Module) Interface• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector• 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Clear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
PowerPower Button• 1 x ATX Power On/Off Button
Power Mode Switch• 1 x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1 x Remote Power LED, 2-pin Terminal Block
PhysicalDimension ( W x D x H )• 203 x 142 x 66.8 mm
Weight Information• 1.8 KG
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall / Side / DIN-RAIL / VESA Mount
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 486,235 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 22.04
EnvironmentOperating Temperature• -40°C to 70°C
  - PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
  - With extended temperature peripherals; Ambient with air flow
  - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 70°C
Relative Humidity• 95% RH @ 70°C (Non-condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
• EN 50155 (EN 50121-3-2 Only)
• E-mark (Pending)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN 61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
  (**Compliant with the standard when utilizing shielded cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
订购信息
Available Models
Model No.Product Description
DI-1200-i7-R1012th Generation Intel Core i7-1265UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1200-i5-R1012th Generation Intel Core i5-1245UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1200-i3-R1012th Generation Intel Core i3-1215UE High Performance, Compact and Modular Rugged Embedded Computer

Package Checklist
• DI-1200 Embedded Computer x1• Power Terminal Block Connector x1
• CPU Thermal Pad  x1• Remote Power On/Off  + Remote Power LED Connector x 1
• Screw Pack x 1• Fan Terminal Block Connector x 1
• Wall Mounting Kit x1 • M.2 Key B Type 3052 to 3042 Adapter Bracket x1

Optional Modules and Accessories
Model No.Description
CFM-IGN102CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CFM-PoE06-R10CFM Module with PoE Function, Individual Port 25.5W
CMI-LAN01-R12CMI Module with 4x RJ45 Intel I210 GbE LAN Ports
CMI-M12LAN01-R12CMI Module with 4 x M12 Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN04-R10CMI Module with 2x Intel X550 10GbE LAN Ports
CMI-VGA02-R10CMI Module with 1x VGA Port
CMI-HD04-R10CMI Module with 1x HDMI Port
CMI-DP02-R10CMI Module with 1x DisplayPort
CMI-DIO05-R10CMI Module with 16DIO (8in 8out)
CMI-COM05-R10CMI Module with 2x RS232/422/485 (Support 5V/12V)
UB1503-R11Universal Bracket with 2x DB9 Cutout
UB1506-R10Universal Bracket with DisplayPort Cutout
UB1508-R10Universal Bracket with HDMI Cutout
UB1510-R11Universal Bracket with 4x M12 Cutout
UB1512-R11Universal Bracket with 4x RJ45 Cutout for CMI-LAN Expansion
UB1516-R10Universal Bracket with VGA Cutout
UB1518-R10Universal Bracket with DIO Cutout
UB1528-R11Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion
DINRAIL-R10Diamond series DIN-RAIL Mount Kit
FAN-EX103External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan (*External fan must be installed when using CFM-PoE module)
SIDE01DI Series Side Mount Kit
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
